LIMAX 1CP

Available now!
LIMAX 1CP
About
LIMAX 1CP

Absolute position detection and safety monitoring in one housing - SIL3 certified

  • Measuring height up to 262m (130 m recommended)
  • Operation speed up to 10 m/s
  • IoT function
  • RJ45/TRM or TRM/TRM connection
  • Floor sensor connection
  • IP54 with connector cap
Connectors

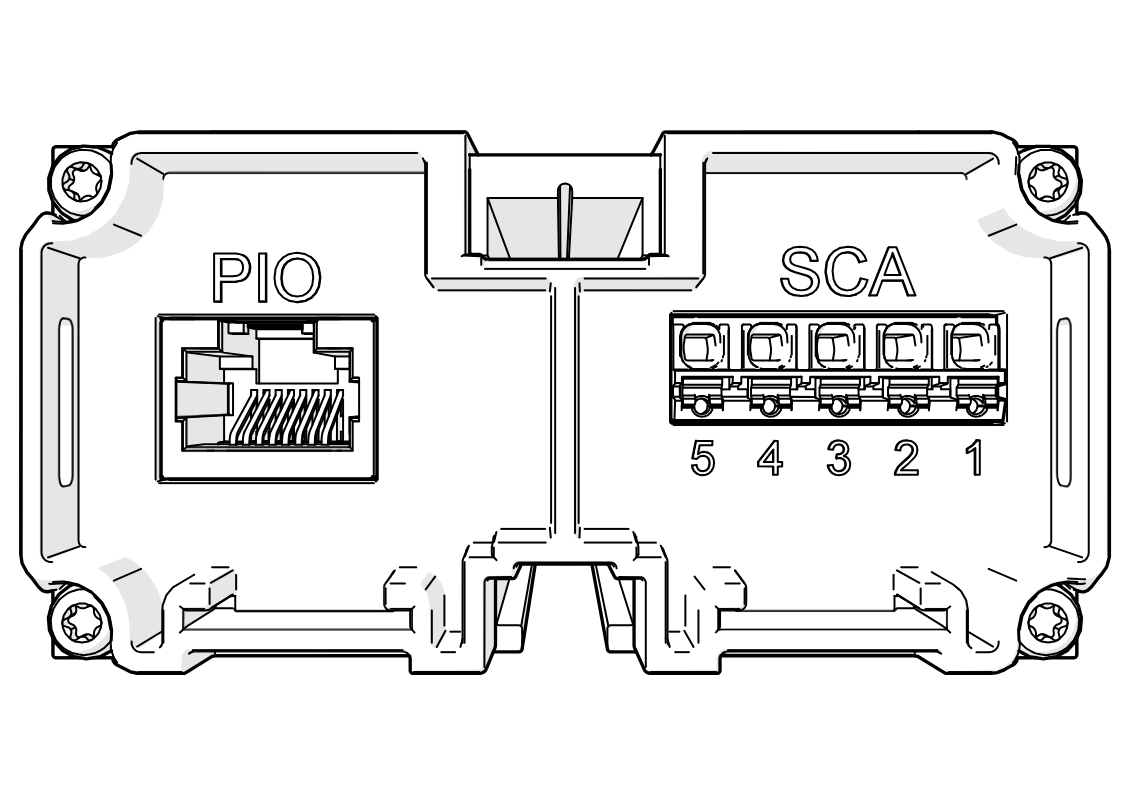

RJ45 connection
Connectors

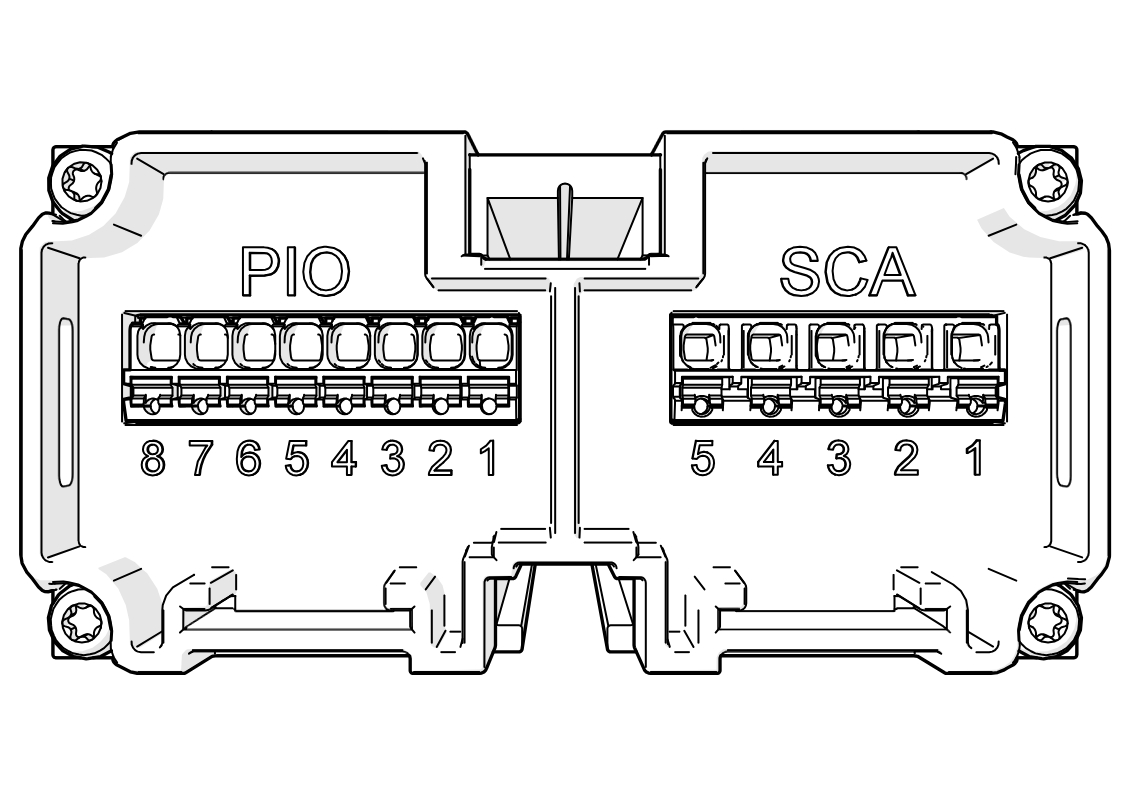

Terminal version
Connectors
No items found.

Mechanical data

DimensionsL x W x H / 291 x 75 x 37.5 mm
Weight1CP without accessories: 455 g
Cover: 23 g
Strain relief: 1g
Material of housingAluminium
Connector for SCA-SignalsPHÖNIX-SPT-SMD1,5/5-H5,0
Connector for PIO-signalsWÜRTH-634108185421
OR
PHÖNIX-SPT-SMD1,5/8-H3,5

Electrical data

Supply voltage (nominal) 24VDC
Residual ripple<100mVpp
Supply voltage range10VDC … 30VDC
Current consumption100mA max. (OC und SR closed)
Safety of power supplySELF/PELV
Connection for floor sensor 18 … 30 VDC for high level; open or <1V for low level
DZO-Rating+24V – 20%, max. current 200mA
InterfaceGalvanically isolated CAN interface, CANopen DS406 or DS417

Environmental conditions

Storage temperature-25 °C … 80 °C
Operation temperature-15 °C … 70° C (EN81 certified)
-20° C…70° C (GB7588 certified)
Humiditymax. 95 %, non-condensing
Protection classIP43
Interference emission / immunityEN 12015 / EN 12016
Vibration / shock resistanceEN 60 068-2-6
EN 60 068-2-27
Max. operation height above sea level3000m

Accessories

LIMAX 1X MW1

Mounting angle with extension plate

LIMAX 1X MW1

Mounting angle with extension plate

Elgo Article ID:
741001022 / LIMAX1X MW1
Content:
  • 1 pcs Mounting angle
  • 1 pcs Mounting extension
  • complete set content can be found in the attached datasheet
STEP File:
Move to
Product
Inquiry

LIMAX 1CP

Connector Kit

LIMAX 1CP

Connector Kit

Elgo Article ID:
741000030 / LIMAX1CP Connector Kit
Content:
  • 1 pcs cap
  • 1 pcs strain relief
  • 4 pcs cable ties
  • 2 pcs screws
STEP File:
Move to
Product
Inquiry

LIMAX 1CP/1R

Service Set

LIMAX 1CP/1R

Service Set

Elgo Article ID:
741000024 / LIMAX1CP/1R Service Set (magnetic band guide)
Content:
  • 1 pcs guide rail
  • 1 pcs slider
STEP File:
Move to
Product
Inquiry

LIMAX S-RMS-H

for High-rise elevators

LIMAX S-RMS-H

Installation Kit High-rise >140 m / higher tension required

Elgo Article ID:
741001020 / LIMAX S-RMS-H
Content:
  • complete set content can be found in the attached datasheet

STEP File:
Move to
Product
Inquiry

LIMAX S-RMS2

for Centrally guided cars

LIMAX S-RMS2

for Centrally guided cars

Elgo Article ID:
741001011 / LIMAX S-RMS2
Content:
  • complete set content can be found in the attached datasheet

STEP File:
Move to
Product
Inquiry

LIMAX S-RMS2-90

angled for backback installation

LIMAX S-RMS2-90

Installation Kit SIL3 / angled

Elgo Article ID:
741001025 / LIMAX S-RMS2-90
Content:
  • complete set content can be found in the attached datasheet

STEP File:
Move to
Product
Inquiry
