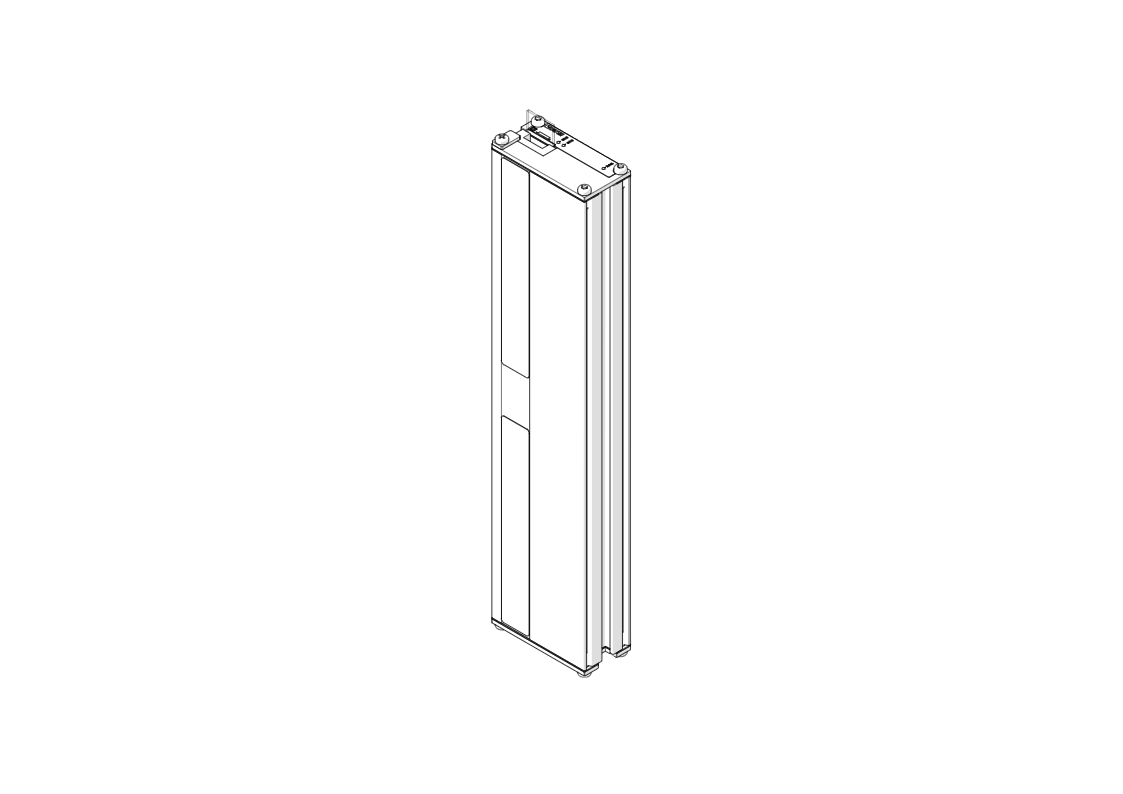

LIMAX 2M

About

LIMAX 2M

Two connection variants: M12M round plug or RJ45

Measuring height up to 262m (130m recommended)
Operation speed up to 10 m/s (4 m/s recommended)
IP53 with RJ45 connection
IP55 and IP67 with M12M round-plug connection
CAN/SSI Interfaces
CAN interface available with or without galvanic isolation

M12M/5 pin connection

Connectors

M12M/8 pin connection

Connectors

RJ45 connection

Connectors

No items found.

Product
Inquiry

Mechanical data

Measuring principle	absolute
Measurement	linear
Maximum measuring length	130 m
Speed	max. 4 m/s
Resolution	62.5 µm (SSI) 500 µm (CAN) 1000 µm (CAN)
Repeat accuracy	± 1 Increment
System accuracy in µm at 20 °C	± (1000 µm + 50 µm x L[m]), L= measuring length in meters
Distance from sensor to magnetic tape	4 mm
Dimensions (without cable)	L x W x H = 247 x 54 x 27 mm
Housing material	aluminium
Connections	RJ45 socket Round plug M12 (5-pin; 8-pin depending on the interface)
Sensor cable	available as an accessory
Weight	approx. 320 g without cable (cable approx. 60 g/m)
Required magnetic tape	AB20-80-10-1-R-D-15-BK80

Electrical data

Supply voltage	+ 10 ... 30 VDC (stabilized)
Residual ripple	< 200 mVpp
Reverse voltage protection	integrated
Power input	max. 200 mA @ 24 VDC
Interfaces	CANopen (CiA 406 or CiA 417) SSI gray- and binary code RS485
Protection of the outputs/interfaces	not short-circuit-proof

Environmental conditions

Storage temperature	-20 °C ... +85 °C
Operation temperature	-10 °C ... +70 °C, (-25 °C ... +85 °C on request)
Humiditiy	max. 95 %, non-condesing
Protection class	IP53 (RJ45 - version, according to EN60529) IP55 (M12M - version, according to EN60529) IP67 (M12M - version, pressure compensation element with membrane, according to EN60529)
Operation height	max. 3000 m absolute altidude
EMC transient emission/immunity	according to EN 12015 / EN 12016
Vibration/shock resistance	according to EN 60068-2-6 / EN 60068-2-27 / EN 60068-2-29

Downloads

LIMAX2M-2X M12M .step

LIMAX2M-2X RJ45 .step

Flyer LIMAX2M-DE

Flyer LIMAX2M-EN

Betriebs-anleitung LIMAX2M-DE

Operating Manual LIMAX2M-EN

Accessories

LIMAX 2M MW

LIMAX 2M MW

Mounting Angle

Elgo Article ID:

741001009 / LIMAX2M MW SET

Content:

Mounting angle
complete set content can be found in the attached datasheet

‍

Please order the mounting angle with Elgo Electronic GmbH, Germany -> info@elgo.de

‍

STEP File:

Mounting instruction

Product
Inquiry

LIMAX 2M MW1

Mounting angle for replacement of Limax2

LIMAX 2M MW1

Mounting angle for replacement of Limax2

Elgo Article ID:

741001010 / LIMAX2M MW1 SET

Content:

Mounting angle
complete set content can be found in the attached datasheet

‍

Please order the mouting angle with Elgo Electronic GmbH, Germany -> info@elgo.de

‍

STEP File:

LIMAX 2M MW1.step

‍

Mounting instruction

Product
Inquiry

Matching magnetband

AB20-80 15Bit

Standard Magnetic Tape 15Bit
